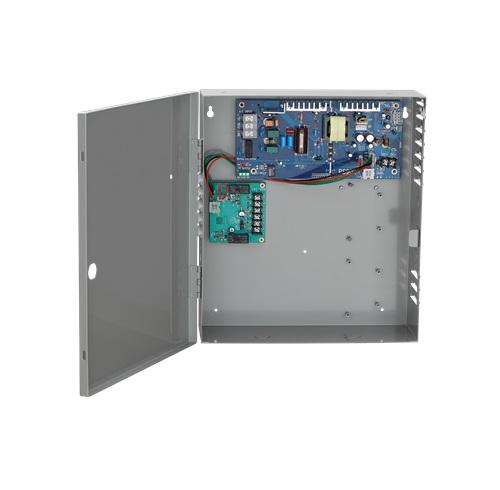

The Schlage PS902 is a 2-amp power supply that offers a high degree of configurability to address the changing needs of the electronic access control market. Designed with versatility and reliability in mind, the PS902 can be factory ordered to meet specific needs or configured in-field using a wide selection of option boards. Their use of separate battery management ensures tight output power regulation to protect downstream devices.

Installation is simple with a flat mounting board and polarized locking connectors to make in-field expansions virtually plug-and-play. The design also provides easier access to the terminal blocks for connection of electrified devices, such as electric strikes, mag locks and card readers.

Features

• 2 amp
• Clean, consistent power output helps protect the sensitive circuitry of downstream products
• Overload protection prevents too much current being pulled by an overload of devices
• 12/24 VDC output field selectable with plug-in jumper
• Externally visible LED indicator provides visual status on AC input
• Ability to provide continual power with battery backup
• Universal 120-240 VAC, fused primary input
• Externally visible AC input indicator with isolated SPDT contacts
• Battery back-up board auto-selects voltage
• LED indicator provides visual status on DC output

Specifications

• Input voltage: 120/240 VAC, 50/60 Hz, universal input
• Output voltage: 12 or 24 VDC field selectable with jumper, Switching supply, 5% regulation, 240Vpp max ripple, DC output overload protection: current limited fold back circuit
• Operating Temperature: 32°-120°F (0°-49°C)
• Fuse Size: AC primary: T3.15A, 250VAC, 5 x 20mm, Battery: 7.5A 32v ATO blade style
• Cabinet: 14"H x 12"W x 4"D in grey, baked enamel finish, Hinged cover with lockdown screws and optional key lock, NEMA Grade 1, Weight: 9lbs., add 4lbs. for each battery
• Certifications: UL 294 for access control, ULC-S318, RoHS, FCC Part 15 , Class 2
